What Is an Electrical Plan & Why Is It Crucial for Renos?

An electrical plan is a dedicated technical drawing that maps every light fixture, switch, General Purpose Outlet (GPO), and hardwired appliance across your architectural floor layout. More than just interior decoration, this document translates your daily living habits into trade-compliant instructions that satisfy AS/NZS 3000 Wiring Rules. Clear plans eliminate guesswork between your builder, carpenter, and electrician, keeping everyone aligned before rough-in begins.

Without an early layout, renovations hit snags fast. Waiting until the walls are framed to decide where appliances go leads to compromised wiring routes, cluttered switch plates, and costly project hold-ups. Integrating comprehensive planning with experienced residential electrical services gives Gold Coast homeowners complete control over their layout long before tools touch the timber framing.

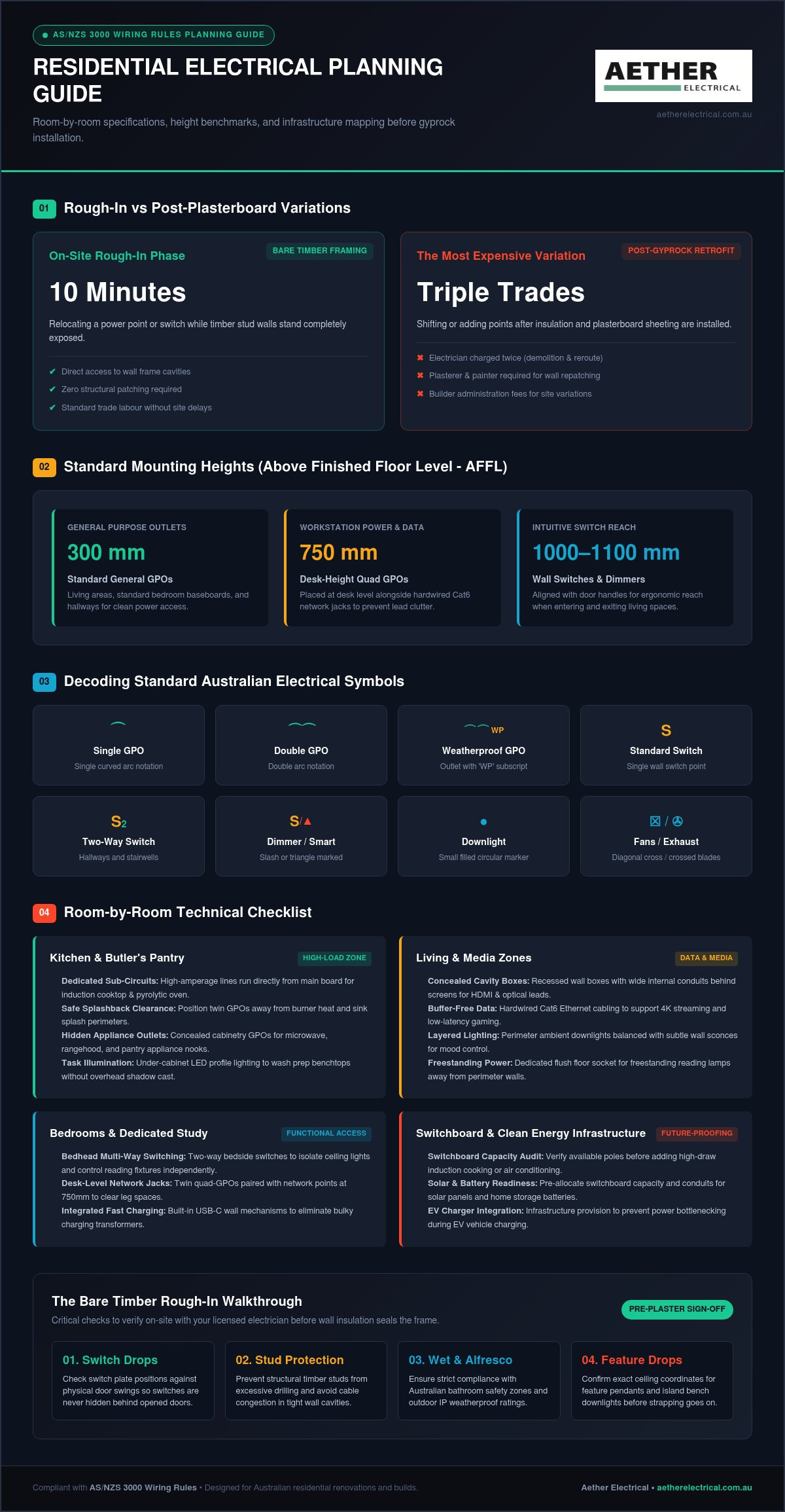

Blueprints vs Reality: Decoding Standard Australian Electrical Symbols

Architectural schematics look like a foreign language until you understand the core symbols. Getting familiar with standard Australian notations ensures you get fixtures where you actually want them:

• Power Outlets (GPOs): A single curved arc represents a standard single GPO. A double arc denotes a double power point, while an adjacent subscript (like 'WP') indicates a weatherproof exterior outlet.
• Wall Switches: Marked with a simple 'S'. A small subscript '2' denotes two-way switching, vital for stairwells and long hallways. Dimmer mechanisms and smart switches feature a small triangle or slash across the symbol.
• Lighting & Ventilation: Downlights appear as small filled circles. Feature pendants use hollow circles with hanging lines. Ceiling fans use crossed propeller blades, while exhaust fans are marked as squares with internal diagonal crosses.

The Financial Risk of Skipping a Detailed Electrical Layout

Shifting a power point takes ten minutes while the timber stud walls stand bare. Once insulation and gyprock go up, that simple tweak becomes a major financial headache. Every post-plasterboard change requires cutting into finished lining, pulling new cables through tight structural cavities, and re-patching sheeting. You pay for the electrician's time twice, alongside the plasterer and painter.

Builders also charge administrative fees to manage unexpected site variations. Detailed layouts prevent cable congestion in narrow wall cavities, protect your structural studs from excessive drilling, and lock in your project budget before the rough-in stage begins.

Room-by-Room Electrical Plan Checklist: Core Indoor Living Spaces

Every functional indoor space relies on proper fixture positioning and circuit sizing. A practical electrical plan details exact heights above finished floor level (AFFL). Standard general power outlets sit comfortably at 300mm AFFL, while wall switches sit between 1000mm and 1100mm for intuitive reach. Adding integrated fast-charge USB-C wall mechanisms eliminates messy adaptors and keeps everyday charging uncluttered.

Kitchen and Butler Pantry Electrical Layout Checklist

Modern kitchens demand heavy power. Induction cooktops and pyrolytic ovens require dedicated, high-amperage sub-circuits run straight from the main board. Keep splashback twin power points positioned safely away from cooktop burners and sink splash perimeters. Tuck dedicated outlets inside cabinetry for built-in microwaves, rangehoods, and hidden appliance nooks. Under-cabinet LED profile lighting washes prep surfaces evenly, banishing shadows cast by overhead downlights.

Living Room and Media Zone Wiring Specifications

Entertainment zones need clean lines without dangling leads. Installing recessed wall boxes with wide internal conduits behind wall-hung screens conceals HDMI and optical cables cleanly. While wireless connections handle light browsing, hardwired Cat6 data cabling ensures buffer-free 4K streaming and low-latency gaming. Layer your illumination by pairing perimeter ambient downlights with subtle wall sconces, plus a dedicated floor socket for freestanding reading lamps.

Bedrooms and Dedicated Home Office Power Requirements

Bedrooms function best with multi-way switching. Two-way switches placed at bedhead height let you switch off ceiling lights without leaving bed, while operating reading lights independently. For remote workstations, place twin quad-GPOs at 750mm desk height alongside hardwired network jacks to maintain clean cord management. Don't forget an internal power point inside the master wardrobe to keep your stick vacuum charged and out of sight.

Planning these functional touches early creates a seamless everyday living experience. If you are refining your renovation drawings, getting your plans reviewed by the team at Aether Electrical ensures your indoor wiring is ergonomic, compliant, and tailored to how you actually live.

Wet Areas, Alfresco, and Outdoor Electrical Planning Checklist

Outdoor entertaining and wet zones demand strict attention to environmental exposure. In subtropical climates across Queensland and Northern New South Wales, moisture, driving rain, and salt air quickly compromise poorly placed fittings. A compliant electrical plan prevents dangerous faults by respecting statutory safety boundaries, specifying robust Ingress Protection (IP) ratings, and incorporating sealed, draft-stopping exhaust fans to stop mould before it starts.

Bathroom, Ensuite, and Laundry Safety Zones

Australian standard AS/NZS 3000 defines four specific moisture zones around baths, basins, and open showers:

• Zone 0 & Zone 1: The interior of the shower base and bath basin. Standard 240V switches and GPOs are strictly prohibited here. Only low-voltage, water-rated luminaires belong in these areas.
• Zone 2 & Zone 3: The immediate splash perimeter extending outwards from water edges. General power points must sit outside these exclusion boundaries.
• Grooming Storage: Recessed shaving cabinets provide an ideal location for internal power points, keeping toothbrushes and shavers charging dryly out of sight.
• Dedicated Wet Circuits: Run independent lines for high-velocity exhaust units, hardwired heated towel rails, and under-tile heating mats to avoid nuisance trips.

Alfresco Dining, Patios, and Outdoor Kitchens

Covered verandas and external cooking zones require commercial-grade protection. Standard interior fittings degrade rapidly when exposed to coastal humidity. Specify weatherproof IP56-rated double GPOs with spring-loaded covers around built-in barbecues, bar fridges, and outdoor prep benches. For summer cooling, center high-output, rust-resistant ceiling fans over seating areas rather than walkways. Add low-voltage garden spike lights and recessed deck tread illumination to make paths safe without creating harsh glare.

Pool Areas and External Perimeter Security Lighting

Pool installations carry unique life-safety mandates. Current standards require equipotential bonding, connecting all conductive metal elements within reach of the water directly to the main earthing system. Pool filtration systems, chlorinators, and heat pumps require dedicated, weather-protected sub-circuits with independent residual current devices (RCDs). Along dark property boundaries, install dual-head motion-sensor LED floodlights above driveways and side paths to deter intruders without disturbing indoor bedrooms.

Switchboards and Future-Proofing: Solar, Batteries, and EV Infrastructure

Your switchboard acts as the central engine of your home. Adding modern induction cooktops, powerful multi-head air conditioners, or pool heating without assessing this hub creates an immediate bottleneck. An effective electrical plan audits your total incoming mains capacity before renovation work starts, preventing tripped breakers and expensive emergency service upgrades later.

Auditing Your Switchboard Capacity and Safety Switches

Older homes across Southeast Queensland and Northern New South Wales often still rely on dated enclosures. Upgrading to modern safety switches brings immediate protection:

• RCBO Protection: Replace obsolete ceramic rewirable fuses with individual Residual Current Breakers with Overcurrent protection (RCBOs) that cut power instantly during a fault.
• Phasing Requirements: Evaluate whether your property needs a shift from single-phase to three-phase power. Large ducted air conditioning, rapid vehicle chargers, and instant electric hot water frequently demand that extra supply buffer.
• Spare Enclosure Capacity: Ensure your new switchboard includes at least 20% to 30% empty pole space. Leaving spare DIN rail room guarantees you won't need a second sub-board when adding future hardware.

Laying the Groundwork for Solar and Home Battery Storage

Renovating offers the cleanest opportunity to prepare for domestic renewable generation. Allocate dedicated garage or exterior wall space early for your hybrid inverter and battery storage unit, keeping required clearances away from direct afternoon sun. Running heavy-gauge solar conduits through the roof cavity down to the switchboard before ceiling battens go up prevents visible external pipework across your finished cladding. Factoring in a smart energy consumption meter gives you real-time visibility over household power draws and solar export limits.

Dedicated Circuits for Fast Electric Vehicle (EV) Charging

Relying on a standard 10A socket for an electric vehicle takes days to recharge a depleted battery. A dedicated Level 2 wallbox requires an independent 32A single-phase or three-phase sub-circuit. Installing heavy-duty cabling through open stud walls directly into the garage eliminates the hassle of tearing through finished plasterboard or trenching under driveways later.

Planning these high-draw assets early saves thousands compared to retrofitting finished rooms. To protect your investment and prepare your home for next-generation electrification, book an upfront layout consultation with Aether Electrical to audit your switchboard capacity today.

Working with Your Electrician: The Rough-In Walkthrough and Sign-Off

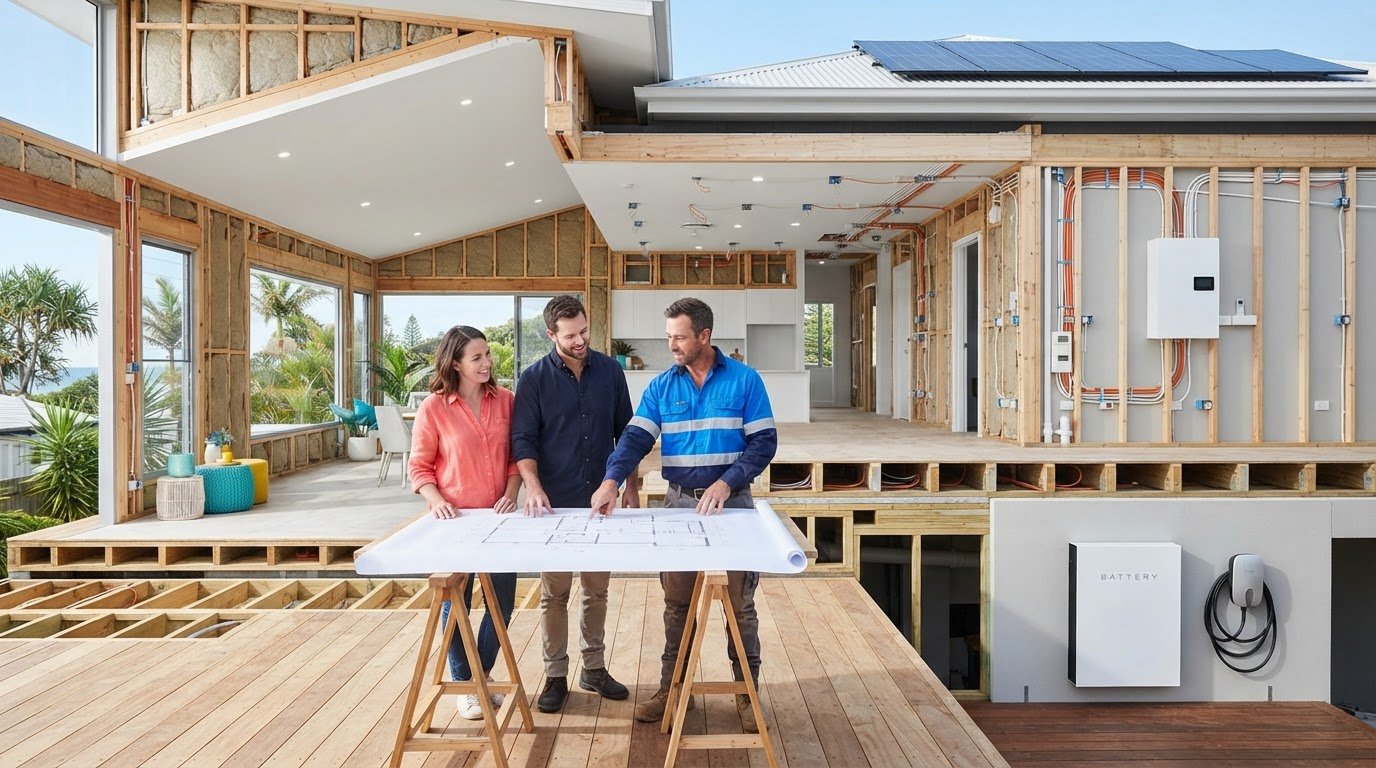

The rough-in occurs immediately after timber framing stands complete and right before insulation or gyprock goes up. This window gives you one clear opportunity to walk the bare frame with your licensed electrician. Walking the site transforms your paper electrical plan into physical wall boxes and cable runs, catching layout clashes before they turn into costly variations.

The Pre-Rough-In On-Site Frame Walkthrough

Walk room by room with chalk or a marker in hand. Mark stud faces alongside your trade specialist to lock in exact plate elevations. Keep these practical physical checks in mind:

• Door Clearance: Verify door hinge directions to ensure swinging doors do not conceal primary light switches.
• Plumbing Alignment: Confirm under-sink plumbing pipes and waste drains do not block dedicated power points for dishwashers or waste disposers.
• Finished Material Depths: Account for floor screed, thick bathroom tiles, and splashback stone so faceplates sit flush rather than recessed.

Communicating Custom Joinery and Lighting Details

Custom cabinetry requires tight trade coordination. Share your cabinetmaker's finalized shop drawings so your electrician knows where to route concealed wiring for routed LED profile channels. Check island bench framing for pop-up power points, confirming that stone waterfall ends leave adequate cavity clearance for wiring boxes. Look upward at your ceiling joists, too. If structural timbers conflict with symmetrical feature pendant drops over your island or dining table, your carpenter must install blocking noggins before cabling starts.

Final Testing, As-Built Documentation, and Certification

Once final fit-off finishes and power goes live, verification begins. Request marked-up as-built plans showing exact hidden conduit paths, giving you a clear reference before mounting wall art or heavy mirrors. Your electrician must complete mandatory testing across every RCBO safety switch to confirm instantaneous trip times under fault conditions.

Never consider a job complete without receiving a formal electrical Certificate of Compliance. This legal document certifies that every circuit adheres strictly to AS/NZS 3000 rules, safeguarding your manufacturer warranties and home insurance policy. For clean craftsmanship and seamless trade coordination on your upcoming renovation, connect with Aether Electrical to bring your electrical plan to life.
